Combination Bar Chairs are used to set the reinforcing bar and mesh to the correct position within the concrete cover. Ideal for use in applications including polystyrene pod slabs, slab-on-ground and swimming pools. The Danley™ range of Plastic Combination Bar Chairs are available in a range of standard sizes: 25mm & 40mm, 50mm & 65mm, 75mm & 90mm, 85mm & 100mm cover.
The easy to use clip-on mechanism of the BC5065C ensures correct mesh placement is maintained when the crew is either walking on the mesh, or when the mesh is being repositioned or moved.

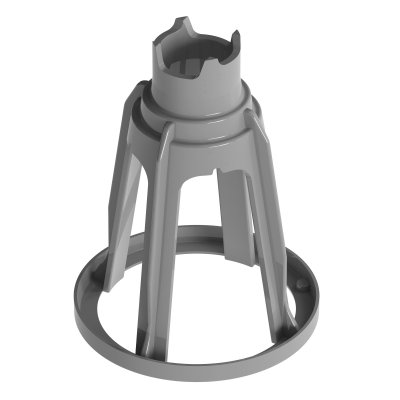

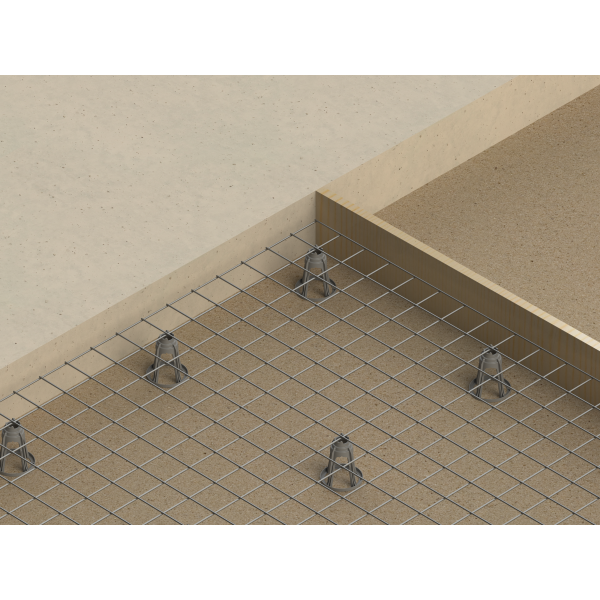

Tall Combination Bar Chairs (Image 3) are used to set the reinforcing bar and mesh to the correct position within the concrete cover for heavy duty, slab-on-ground applications. The Danley™ range of Tall Plastic Combination Bar Chairs are available in a range of standard sizes: 105mm & 110mm, 115mm & 120mm, 125mm & 130mm, 135mm & 140mm, 145mm & 150mm, 155mm & 160mm, 165mm & 170mm
We provide stronger, more reliable Tall Combination Bar Chairs! We have enhanced our 4 SKUs (BC135140, BC145150, BC155160, BC165170) to deliver unmatched durability.
Danley Combination Bar Chairs comply with the requirements of AS/NZS 2425:2015.
Features:
| File | Type | File Description |
|---|---|---|
| Danley Product Catalogue ANZ | Product Catalogues | Our Danley™ product range is specifically developed to solve problems faced by the industry in the design and construction of concrete flooring applications. |

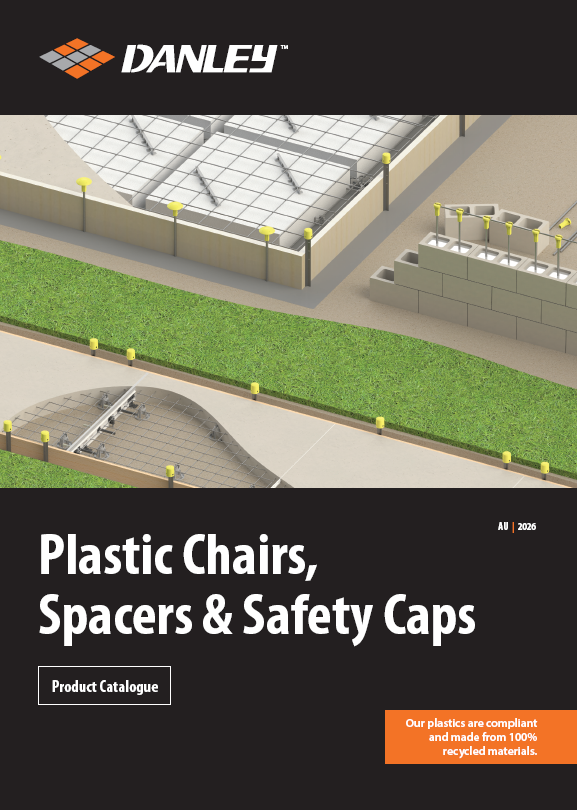

| Danley Plastic Chairs & Spacers Product Catalogue ANZ | Product Catalogues | Danley Plastic Chairs & Spacers Product Catalogue |

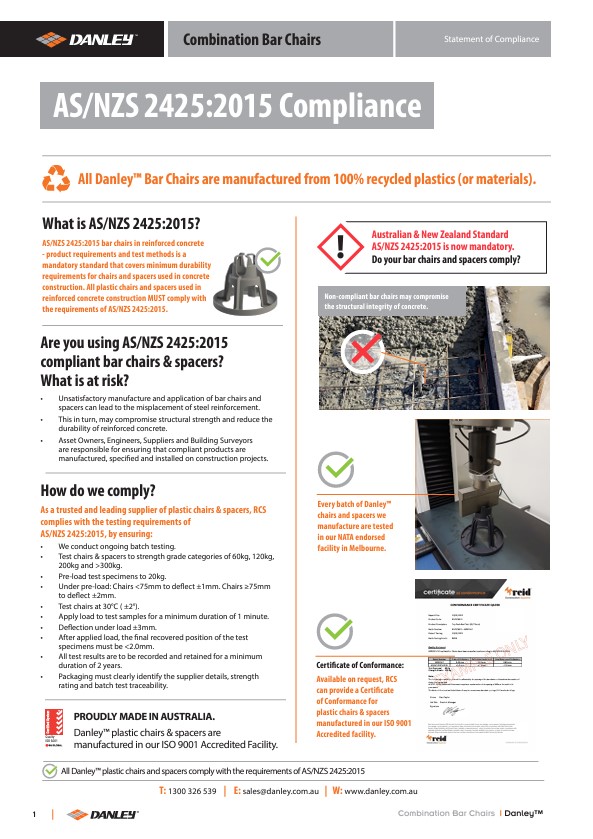

| Danley Combination Bar Chairs Statement of Compliance | Product Bulletins | Danley_Combination Bar Chairs_Statement of Compliance |
| File | Type | File Description |
|---|---|---|

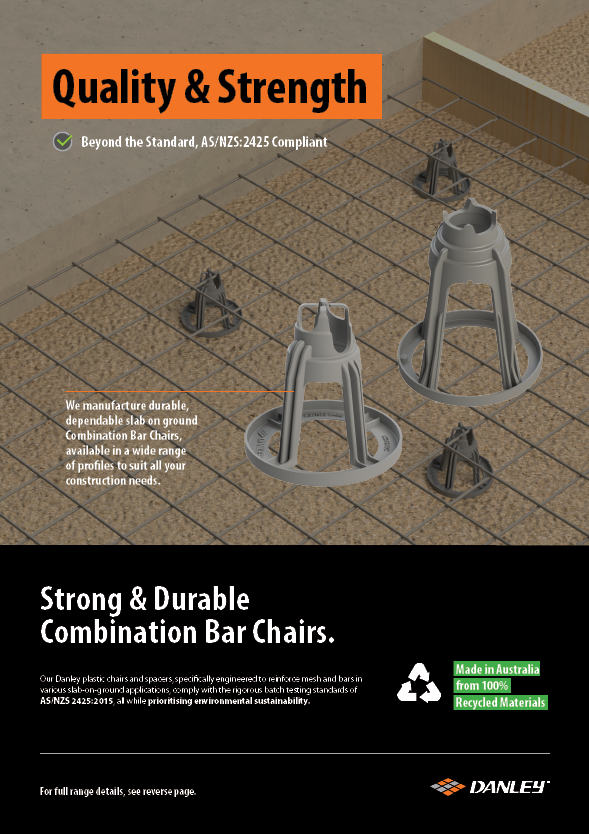

| Danley Tall Combination Bar Chairs_A4 Flyer | Brochures & Flyers | Danley Tall Combination Bar Chairs_A4 Flyer |
| Part # | Description | AS/NZS 2425 Load Rating (kg) | Pack qty (Each) | Pallet qty (pack) | Pallet qty (Each) | Pallet Height | Pallet Cubic metre | A (mm) | B (mm) | C (mm) | D (mm) Max bar size |
| BC2540 | Combination Bar Chair 25/40mm | 120 | 100 | 50 | 5,000 | 1,000 | 1.44 | 25 | 40 | 85 | up to 20mm |
| BC5065C | Combination Bar Chair 50/65mm Clip On | 120 | 100 | 60 | 6,000 | 1,300 | 1.87 | 50 | 65 | 100 | up to 20mm |
| BC7590 | Combination Bar Chair 75/90mm | 120 | 100 | 40 | 4,000 | 1,100 | 1.58 | 75 | 90 | 110 | up to 20mm |
| BC85100 | Combination Bar Chair 85/100mm | 120 | 100 | 40 | 4,000 | 1,500 | 2.16 | 85 | 100 | 110 | up to 20mm |
| Part # | Description | AS/NZS 2425 Load Rating (kg) | Pack qty (Each) | Pallet qty (pack) | Pallet qty (Each) | Pallet Height | Pallet Cubic metre | A (mm) | B (mm) | C (mm) | D (mm) Max bar size |
| BC105110 | Tall Combination Bar Chair 105/110 | 120 | 100 | 40 | 4,000 | 1,450 | 2.09 | 105 | 110 | 110 | up to 25mm |
| BC115120 | Tall Combination Bar Chair 115/120 | 120 | 100 | 24 | 2,400 | 1,550 | 2.23 | 115 | 120 | 110 | up to 25mm |
| BC125130 | Tall Combination Bar Chair 125/130 | 120 | 100 | 24 | 2,400 | 1,550 | 2.23 | 125 | 130 | 110 | up to 25mm |
| BC135140 | Tall Combination Bar Chair 135/140 | 120 | 100 | 40 | 4,000 | 1,590 | 2.29 | 135 | 140 | 110 | up to 25mm |
| BC145150 | Tall Combination Bar Chair 145/150 | 120 | 100 | 24 | 2,400 | 1,470 | 2.12 | 145 | 150 | 120 | up to 25mm |
| BC155160 | Tall Combination Bar Chair 155/160 | 120 | 100 | 20 | 2,000 | 1,470 | 2.12 | 155 | 160 | 120 | up to 25mm |
| BC165170 | Tall Combination Bar Chair 165/170 | 120 | 50 | 40 | 2,000 | 1,500 | 2.16 | 165 | 170 | 120 | up to 25mm |
