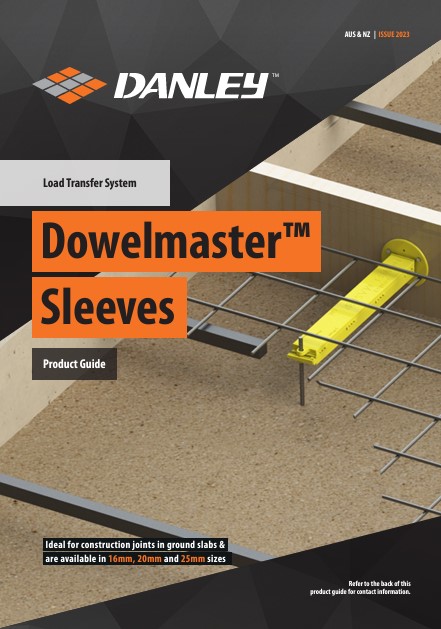

Dowelmaster™ sleeves are multi-directional plastic sleeves suitable for high capacity square dowels. They allow for contraction at the joint, as well as having a small amount of lateral movement and expansion capacity. They are ideal for construction joints in ground slabs and are available in 16mm, 20mm and 25mm standard sizes. The 16mm and 20mm Dowelmaster™ sleeves nail to wooden form boards (with optional nailing plate) or attach directly to Danley Keyjoint. The sleeves are supported at the rear by a stake and wedge system eliminating the need for bar chairs.
The 25mm Dowelmaster™ sleeves have a built in nailing flange. They have a separate extension length which can be purchased to allow the sleeve to suit longer dowel lengths.
File | Type | File Description |
---|---|---|
Keyjoint with Dowelmaster Section.pdf | Drawings | |
Dowelmaster 25 mm Section.pdf | Drawings | |
Dowelmaster Section.pdf | Drawings | |
Expanda Joint With Dowelmaster Section.pdf | Drawings | |
Dowelmaster 25 mm Section.dwg | DWG | |
Dowelmaster Section.dwg | DWG | |
Keyjoint with Dowelmaster Section.dwg | DWG | |
Expanda Joint With Dowelmaster Section.dwg | DWG |
