PaveX™ Expanda™

RRP $0.00
    • Description
    • Features
    • Documents

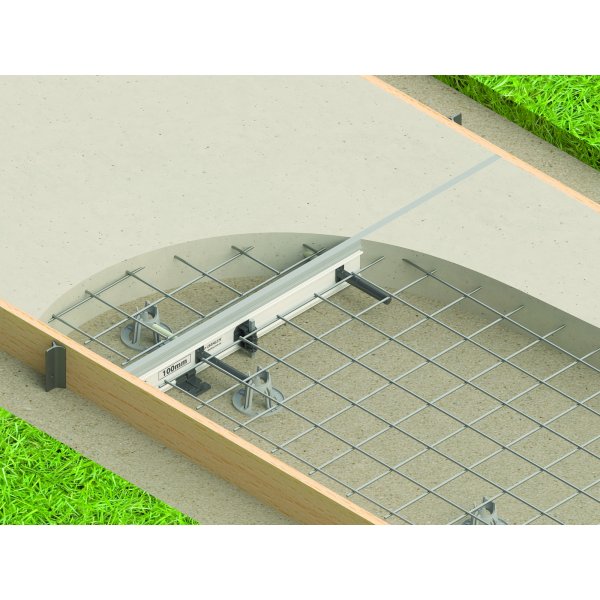

    PaveX™ Expanda™ is a core component of the broader PaveX™ Residential Pavement eco-system. Designed and developed in conjunction with councils and concrete contractors alike, PaveX™ Expanda™ is a lightweight, corrosion-free and modular expansion joint system that is quick & easy to install.



    Available in 75mm, 100mm and 125mm profiles, PaveX™ Expanda™ complies with the requirements of Australian Standard

    AS 3727.1:2016 Residential Pavements. Innovative 14mm diameter Glass Fibre Reinforced Polymer dowels and sleeves provide load transfer between pavement sections. The unique design of the uPVC extruded PaveX™ Expanda™ sacrificial formwork profiles provide up to 10mm of thermal expansion of concrete and are job site tough.



    Proudly designed and developed in Australia, PaveX™ Expanda™ is supported by best-in-class specification detail and installation guidelines. PaveX™ Expanda™ can be easily added to Council Master Specifications and is intuitive to use on site.



    SMART: Fully integrated pavement system.

    EFFECTIVE: Reduces maintenance & repair costs.

    SAFE: Mitigates trip hazards and public liability exposure.

    Features:

    • Complies with the requirements of AS 3727.1:2016 Residential Pavements.
    • Corrosion-free design, uPVC formwork profiles extruded to 3 metres in length.

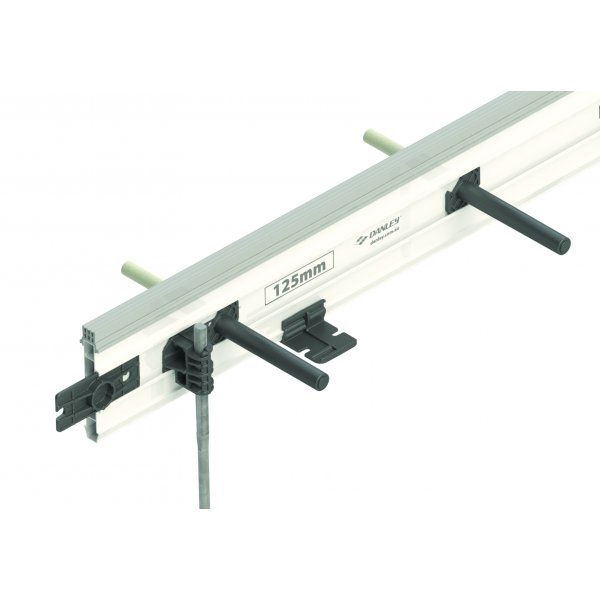

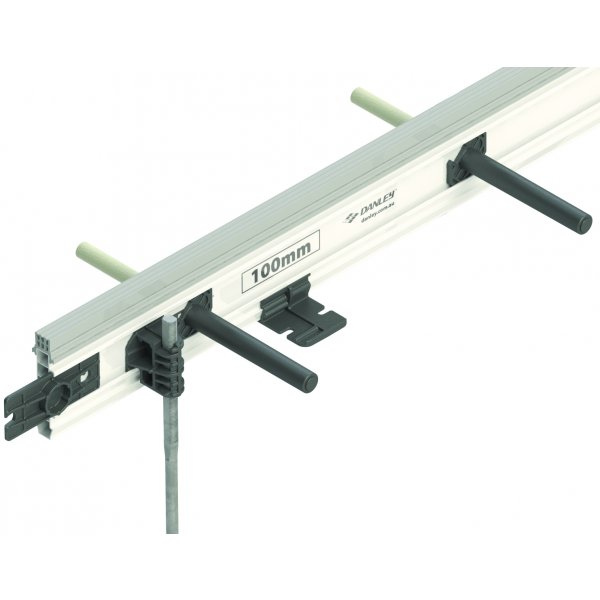

    • Available in 75mm, 100mm and 125mm profiles.
    • Supplied in kits - 15 lineal metres of joint, complete with all PaveX™ components.
    • 14mm diameter GFRP dowels and sleeves provide load transfer.
    • PaveX™ Expanda™ joint formwork provides for 10mm thermal expansion of concrete.
    • Innovative formwork channel engages the stake bracket, dowel sleeves and joiner.
    • Drive-n-Twist stake and stake bracket for levelling of formwork.
    • Joiner doubles as a stake tool.
    • Clip-on feet help position and support the formwork during installation & pour.
    • Formwork supplied with pre-fitted, stay-in-place capping.
    • PaveX™ Expanda™ load supporting capping features a removable strip if joint fillers are specified.

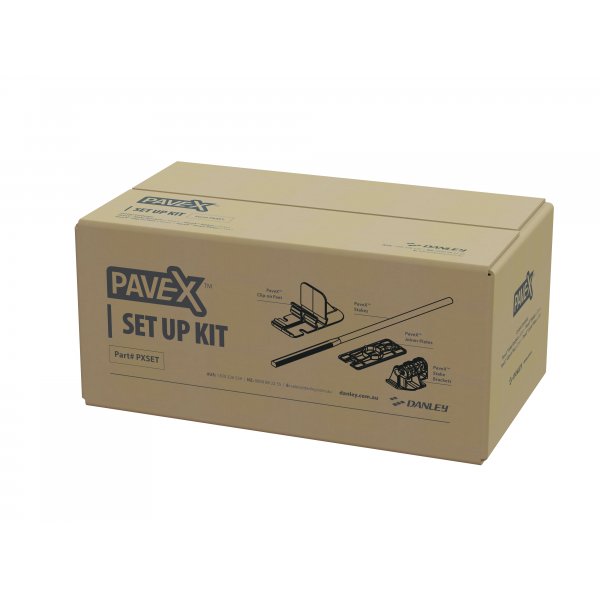

    • Supplied to site in a simple 3 pack kit.
    • PaveX™ Expanda™ End Caps are sold separately.
    File Type File Description

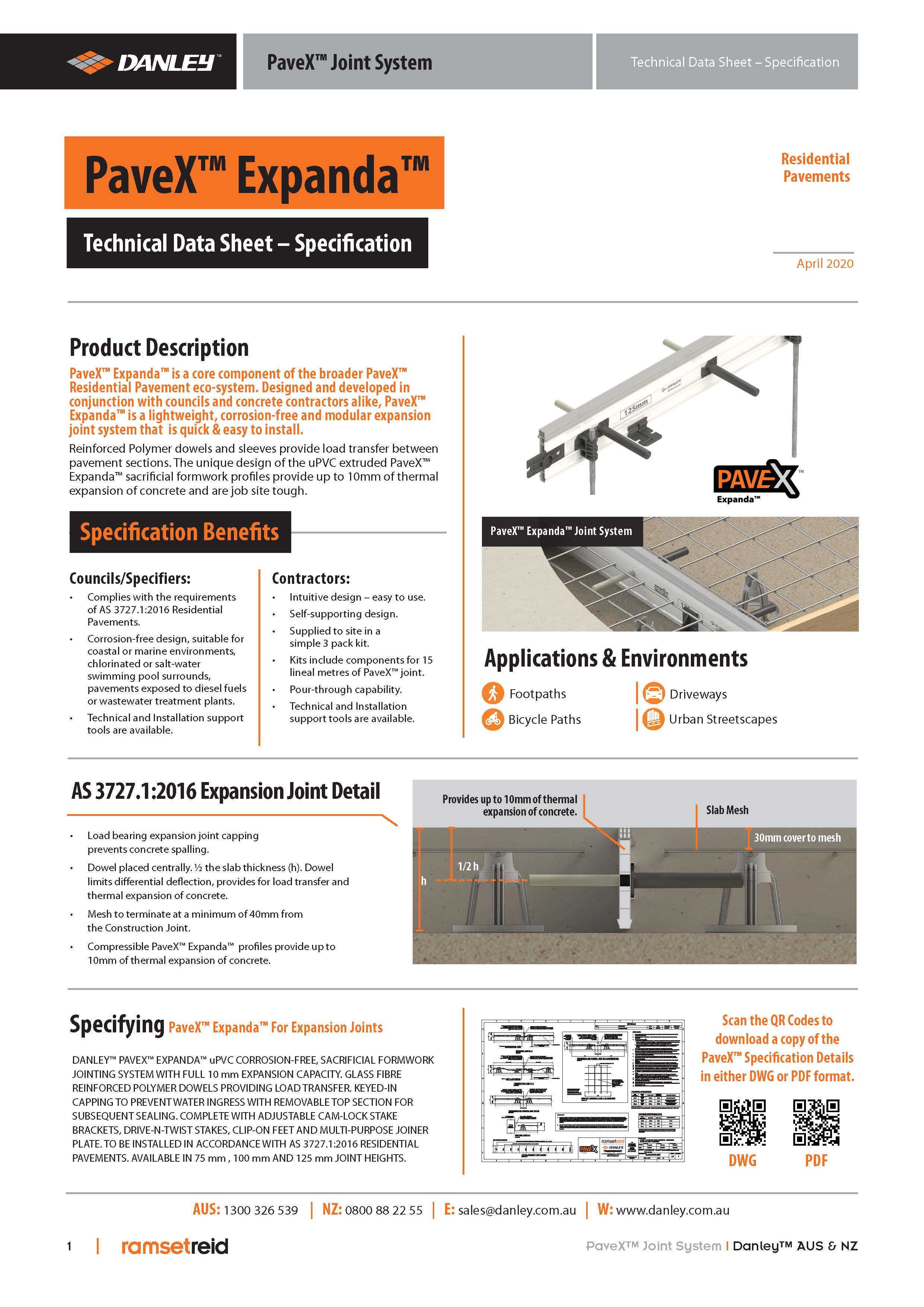

    PaveX™ Expanda™ Tech Data Sheet TechnicalPaveX™ Expanda™ is a core component of the broader PaveX™ Residential Pavement eco-system.
    PaveX™ Expanda™ HD TDS TechnicalPaveX™ Expanda™ HD is a core component of the broader PaveX™ Residential Pavement eco-system. Designed specifically for use in heavy duty residential pavement applications.
    PaveX™Expanda™ HD Installation Guide TechnicalPaveX™Expanda™ HD Installation Guide. 6mm Diamond™ Dowels are sold separately.

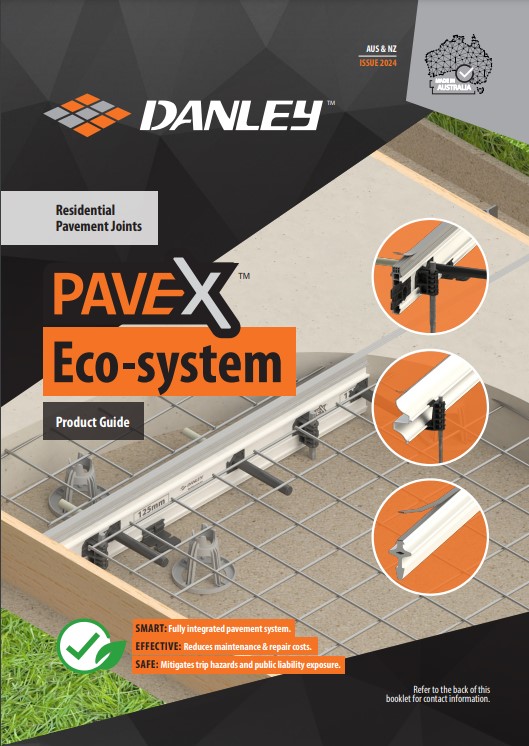

    PaveX™ Joint System Product Guide BrochuresDesigned and developed in conjunction with councils and concrete contractors alike, PaveX™ expansion and weakened plane joint solutions are lightweight, corrosion-free and are quick & easy to install.
    PaveX™ Case Study_Murrawal Rd Footpath NSW Project Case StudiesBucking the trend of "trial and error", the Central Coast Council puts new PaveX™ Expanda™ & PaveX™ Crack-A-Joint™ to the test in their Murrawal Rd Footpath project, with perfect results...
    Barmaryee Road Shared Path PaveX Project Case Study Project Case StudiesThe Barmaryee Road Shared Path project in Yeppon QLD, was the very first Livingstone Shire Council project where PaveX™ Expanda™ was specified and installed...
    DAN-DWG-007 - PaveX™ Residential Footpaths and Pavements (pdf) DrawingsSpecification Detail for PaveX™ - Residential Footpaths and Pavements (pdf)
    DAN-DWG-007 - PaveX™ Residential Footpaths and Pavements (DWG) DWGSpecification Detail for PaveX™ - Residential Footpaths and Pavements

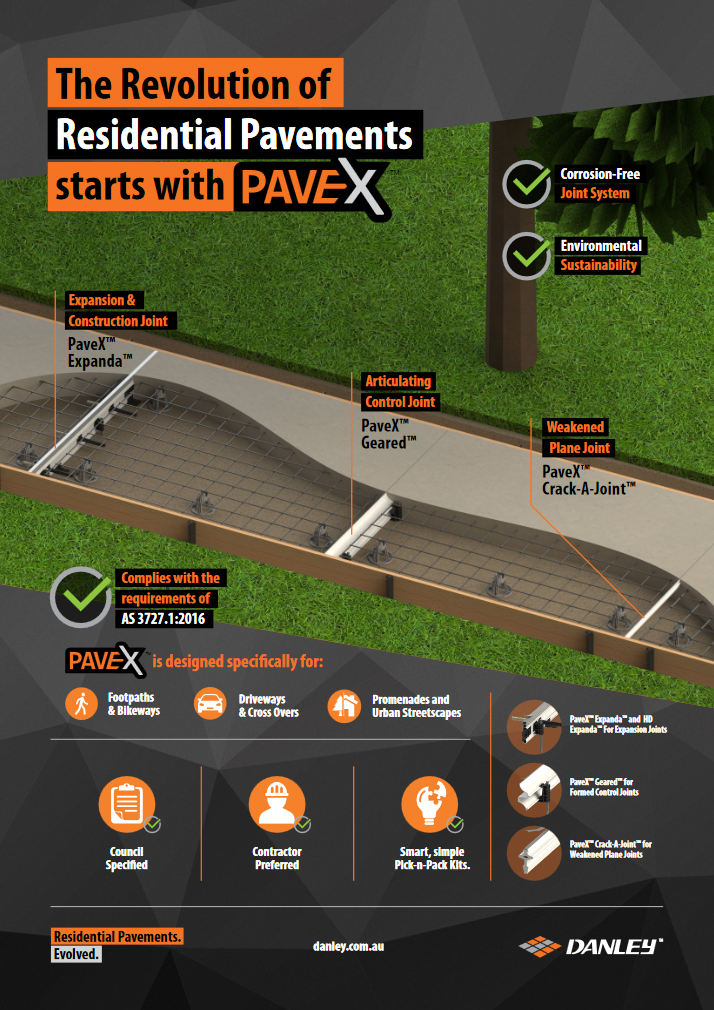

    PaveX™ Expanda™ Advert - Councils & Specifiers BulletinPaveX™ Expanda™ Council Specification Advert
    PaveX™Expanda™ Advert - Distributors BulletinPaveX™Expanda™ Advert - Distributors
