PaveX™ Expanda™ HD

RRP $0.00
    • Description
    • Features
    • Documents

    PaveX™ Expanda™ HD is a core component of the broader PaveX™ Residential Pavement eco-system. Designed specifically for use in heavy duty residential pavement applications including service vehicle cross-overs, driveways, shared bikeways and urban streetscapes. PaveX™ Expanda™ HD is a lightweight, modular expansion joint system that is quick & easy to install.



    Designed for use with 6mm Danley™ Diamond™ Galvanised Dowels & Sleeves at 450mm centres, PaveX™ Expanda™ HD provides high capacity load transfer between pavement sections, to the requirements of AS 3727.1:2016 Residential Pavements.



    The unique design of the uPVC extruded PaveX™ Expanda™ HD 150mm sacrificial formwork profile provides up to 10mm of thermal expansion of concrete and is job site tough.



    SMART: Fully integrated pavement system.

    EFFECTIVE: Reduces maintenance & repair costs.

    SAFE: Mitigates trip hazards and public liability exposure.



    6mm Diamond™ Dowels: Expanda™ HD is designed for use with 6mm Danley™ Diamond™ Galvanised Dowels & Sleeves at 450mm centres. Diamond™ Dowels are sold separately.

    Features:

    • Complies with the requirements of AS 3727.1:2016 Residential Pavements.
    • Corrosion-free, uPVC 150mm formwork profile extruded to 3 metres in length.
    • Supplied in a Set - 15 lineal metres of joint, complete with all PaveX™ components.
    • Expanda™ HD is designed for use with 6mm Danley™ Diamond™ Galvanised Dowels & Sleeves at 450mm centres. Diamond™ Dowels are sold separately.
    • PaveX™ Expanda™ joint formwork provides for 10mm thermal expansion of concrete.
    • Innovative formwork channel engages the stake bracket, dowel sleeves and joiner.
    • Twist-n-Lock stake bracket for levelling of formwork.
    • Joiner doubles as a stake tool.
    • Clip-on feet help position and support the formwork during installation & pour.
    • Formwork supplied with pre-fitted, stay-in-place capping.
    • PaveX™ Expanda™ HD load supporting capping features a removable strip if joint fillers are specified.
    • PaveX™ Expanda™ 150mm End Caps are sold separately.
    File Type File Description

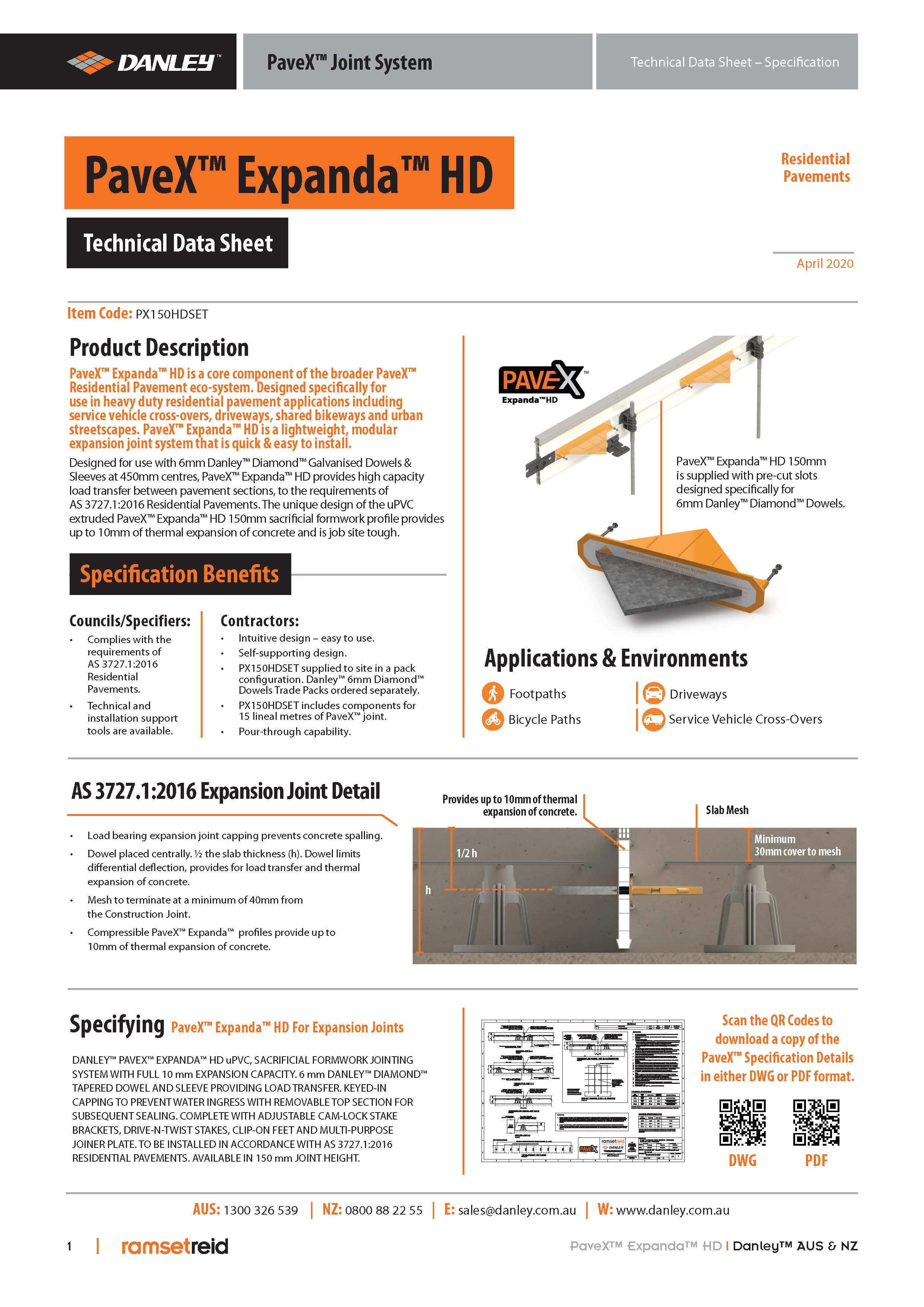

    PaveX™ Expanda™ HD TDS TechnicalPaveX™ Expanda™ HD is a core component of the broader PaveX™ Residential Pavement eco-system. Designed specifically for use in heavy duty residential pavement applications.
    PaveX™Expanda™ HD Installation Guide TechnicalPaveX™Expanda™ HD Installation Guide. 6mm Diamond™ Dowels are sold separately.
    PaveX™ Joint System Product Guide BrochuresDesigned and developed in conjunction with councils and concrete contractors alike, PaveX™ expansion and weakened plane joint solutions are lightweight, corrosion-free and are quick & easy to install.
    PaveX™ Case Study_Murrawal Rd Footpath NSW Project Case StudiesBucking the trend of "trial and error", the Central Coast Council puts new PaveX™ Expanda™ & PaveX™ Crack-A-Joint™ to the test in their Murrawal Rd Footpath project, with perfect results...
    Barmaryee Road Shared Path PaveX Project Case Study Project Case StudiesThe Barmaryee Road Shared Path project in Yeppon QLD, was the very first Livingstone Shire Council project where PaveX™ Expanda™ was specified and installed...
