PaveX™ Geared™ Articulating Control Joint with Rip-A-Strip™ Capping

RRP $0.00
    • Description
    • Features
    • Documents
    • Digital Downloads
    • Videos



    PaveX™ Geared™ is designed specifically for concrete footpaths and shared bikeways impacted by soil heave or tree root ingress. An innovative articulating formed control joint system, PaveX™ Geared™ allows for concrete pavement sections to rise and/or fall whilst limiting differential deflection and mitigating tripping hazards.



    PaveX™ Geared ™ is available in 100mm, 125mm and 150mm profile heights. Extruded in corrosion-free, UV stabilised uPVC to standard 3 metre lengths, PaveX™ Geared™ profiles are co-extruded with Rip-A-Strip™ Capping in either Black or Grey that provide clean, laitance-free joint lines. PaveX™ Geared™ is sold in kits which includes Galvanised Stakes and Brackets for fast and easy on-site installation. Clip-on Joiners are sold separately.



    PaveX™ Geared™ complies with the requirements of AS 3727.1:2016 Residential Pavements.



    NZ MasterSpec Partner - Learn More



    Safety: The innovative key-shaped profile allows for the articulation of concrete slabs that mitigate differential deflection that can cause trip hazards. Mitigates public liability exposure for councils. Reduces ongoing maintenance and remedial costs.

    • Designed for environments susceptible to soil heave or tree root ingress.
    • Complies with the requirements of AS 3727.1:2016 Residential Pavements.
    • Innovative keyed profile provides load transfer without the need for dowels.
    • Available in standard profile heights of 100mm, 125mm and 150mm.
    • Profiles are available in standard 3 metre lengths.
    • Corrosion-Free: PaveX™ Geared™ is extruded from UV stabilised uPVC.
    • PaveX™ Geared™ is co-extruded with flexible PVC Rip-A-Strip™ Capping. Rip-A-Strip™ Capping provides a clean and laitance-free joint finish.
    • No joint filler required.
    • PaveX™ Geared™ will butt up to any given edge, including columns or walls.
    • Supplied in Kits, complete with Twist-n-Lock brackets and stakes for fast and efficient installation.
    • Lightweight and easy to carry around the job site.
    • Reduces the risk of early shrinkage cracking, producing architecturally aesthetic pavements.

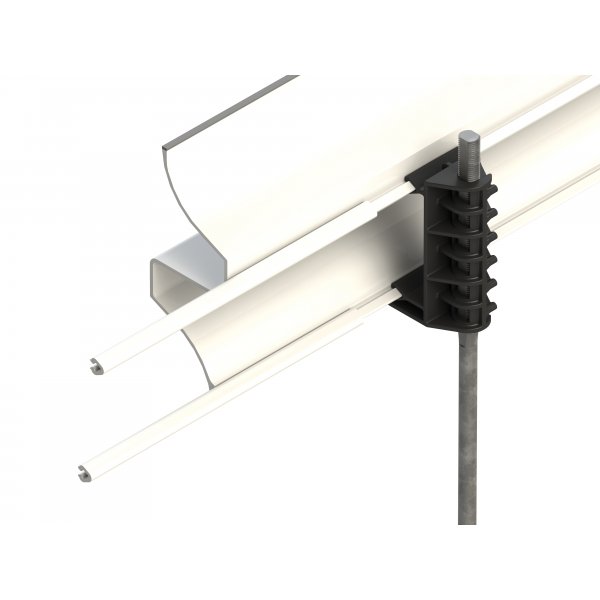

    • Optional: PaveX™ Geared™ Joiners are sold separately (50pcs per pack).
    File Type File Description
    Danley PaveX Eco-system Product Guide ANZ Product GuidesDesigned and developed in conjunction with councils and concrete contractors alike, PaveX™ systems iare lightweight, corrosion-free and modular expansion joint systems that is quick & easy to install.
    Danley PaveX™ Geared™ Product Guide ANZ Product GuidesPaveX™ Geared™ Product Guide
    File Type File Description
    Danley PaveX Ecosystem_A4 Flyer Brochures & FlyersDanley PaveX Ecosystem_A4 Flyer
    PaveX™ Geared™ Advert Brochures & FlyersPaveX™ Geared™ Advert
    PaveX™ Geared™ TDS Product Data SheetsPaveX™ Geared™ TDS
    Danley PaveX Eco-system Statement of Compliance Product BulletinsPaveX™ is a residential pavement eco-system which complies with the requirements of Australian Standard AS 3727.1:2016 Residential Pavements. The PaveX™ eco-system comprises of PaveX™ Expanda™ for use in expansion or construction joints, PaveX™
    Danley™ PaveX™ Geared™ Articulating Formed Control joint

    Danley™ PaveX™ Geared™ Articulating Formed Control joint! Designed to mitigate tripping hazards in footpaths caused by tree root ingress or soil heave. Reduces public liability exposure for councils.

    Danley™ PaveX™ Geared™ Articulating Control Joint with Rip-A-Strip™ Capping

    PaveX™ Geared ™ is available in 100mm, 125mm and 150mm profile heights. Extruded in corrosion-free, UV stabilised uPVC to standard 3 metre lengths, PaveX™ Geared™ profiles are co-extruded with Rip-A-Strip™ Capping in either Black or Grey that provide clean, laitance-free joint lines. PaveX™ Geared™ is sold in kits which includes Galvanised Stakes and Brackets for fast and easy on-site installation. Clip-on Joiners are sold separately.

    Geared™ Kit Product Codes

    Geared™ Kit Product Codes:

    Kit Code:DescriptionPacks per Kit
    PXG100BKITPaveX™ Geared™ 100mm 5x3m Kit Black Rip-A-Strip™ Capping, Stakes & Brackets2
    PXG100GKITPaveX™ Geared™ 100mm 5x3m Kit Grey Rip-A-Strip™ Capping, Stakes & Brackets2
    PXG125BKITPaveX™ Geared™ 125mm 5x3m Kit Black Rip-A-Strip™ Capping, Stakes & Brackets2
    PXG125GKITPaveX™ Geared™ 125mm 5x3m Kit Grey Rip-A-Strip™ Capping, Stakes & Brackets2
    PXG150BKITPaveX™ Geared™ 150mm 5x3m Kit Black Rip-A-Strip™ Capping, Stakes & Brackets2
    PXG150GKITPaveX™ Geared™ 150mm 5x3m Kit Grey Rip-A-Strip™ Capping, Stakes & Brackets2
    PXGCJPaveX™ Geared™ Clip-on Joiner Pack Contains 50pcs"1

    Featured Video

    Danley™ PaveX™ Geared™ Articulating Control Joint with Rip-A-Strip™ Capping

    PaveX™ Geared ™ is available in 100mm, 125mm and 150mm profile heights. Extruded in corrosion-free, UV stabilised uPVC to standard 3 metre lengths, PaveX™ Geared™ profiles are co-extruded with Rip-A-Strip™ Capping in either Black or Grey that provide clean, laitance-free joint lines. PaveX™ Geared™ is sold in kits which includes Galvanised Stakes and Brackets for fast and easy on-site installation. Clip-on Joiners are sold separately.

    View Video
    Danley™ PaveX™ Geared™ Articulating Control Joint with Rip-A-Strip™ Capping

    Danley™ Slab-on-Ground Industrial, Residential, and Pavement Systems have a trusted history spanning over 25 years.
