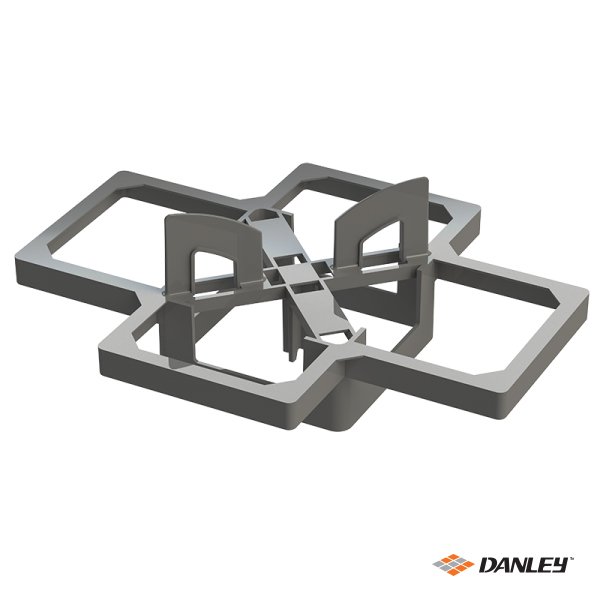

The PodStar™ acts as a spacer keeping the foam pods at a designed 110mm spacing forming internal beams of uniformed width. The reinforcing bars can be placed in these beams and are held in a central position by the PodStar™.
The asymmetrical shape of the PodStar™ Spacer allows for the product to be used in two directions when being used to create edge beams. One direction will space the pod 165mm from the formwork while the other at 195mm.
Complies with the requirements of AS/NZS 2425:2015.
Features:
File | Type | File Description |
---|---|---|
Danley Product Catalogue ANZ | Product Catalogues | Our Danley™ product range is specifically developed to solve problems faced by the industry in the design and construction of concrete flooring applications. |
Danley Plastic Chairs & Spacers Product Catalogue ANZ | Product Catalogues | Danley Plastic Chairs & Spacers Product Catalogue |
File | Type | File Description |
---|---|---|

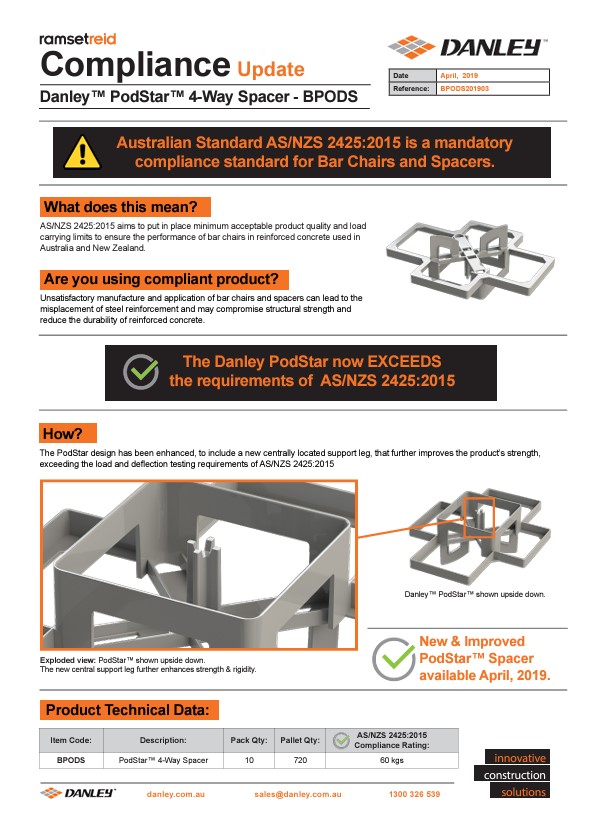

Danley BPODS Compliance Update_April 2019 | Product Bulletins | Danley BPODS 4-Way Spacer Compliance Update (April, 2019). |
Part | Description | AS2425 Load Rating (kg) | Pack qty (Each) | Pallet qty (pack) | Pallet qty (Each) | Pallet Height | Pallet M3 | A (mm) | B (mm) | C (mm) | D (mm) |
BPODS | Pod Star Spacer | 60 | 10 | 72 | 720 | 1,400 | 2.02 | Refer to Image |
